Pacific Performance Engineering 2014-2018 GM 6L80 Transmission Fluid Thermal Bypass Valve – 3/8” Line

Pacific Performance Engineering 2020-2025 GM 3.0L Duramax 2.7L L3B Turbomax MicroPure® Engine Oil Filter

Pacific Performance Engineering 2020-2025 GM 3.0L Duramax 2.7L L3B Turbomax MicroPure® Engine Oil Filter

32.90$
Blue-Star Windshield Repair Kit, .027 fl oz

Blue-Star Windshield Repair Kit, .027 fl oz

12.95$
2 sold in last 17 hours
Hurry! Over 4 people have this in their carts

Features

  • Maximizes fluid flow to and from the transmission cooler
  • Billet aluminum construction
  • Direct fit with OEM 6L80 6-Speed transmission and fluid lines
  • Service plug with Neodymium magnet and O-ring seal
  • Patent Pending
  •  Delivery & Return

    Delivery

    Store delivery FREE

    1-3 working days

    Returns

    Return

    We will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period).

    Returns in store FREE

    Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
    Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

  •  Ask a Question
  Estimated Delivery: Sun, Jan 18 – Thu, Jan 22
  ... people are viewing this right now
Compare
  Share
Guaranteed Safe CheckoutTrust

99.00$

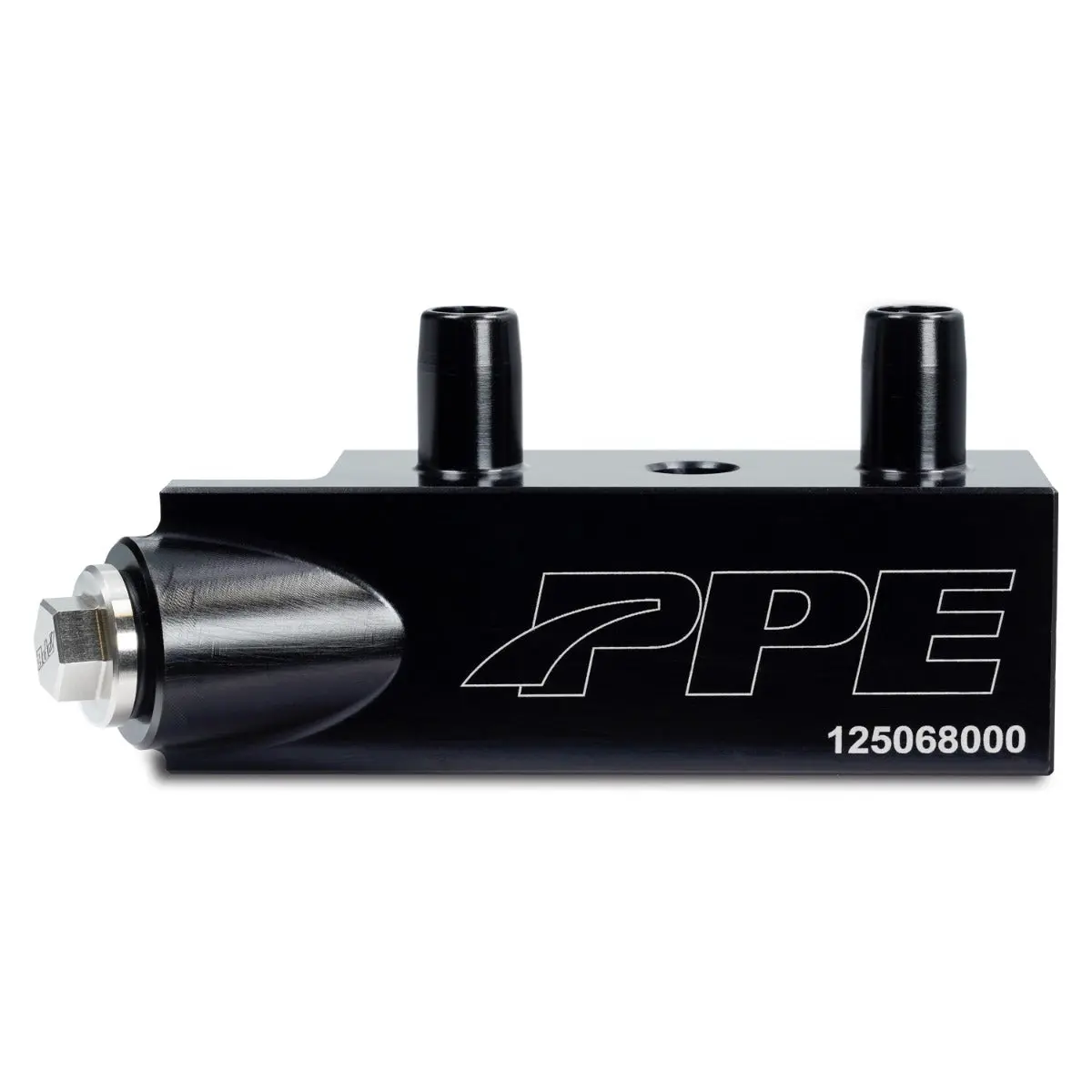

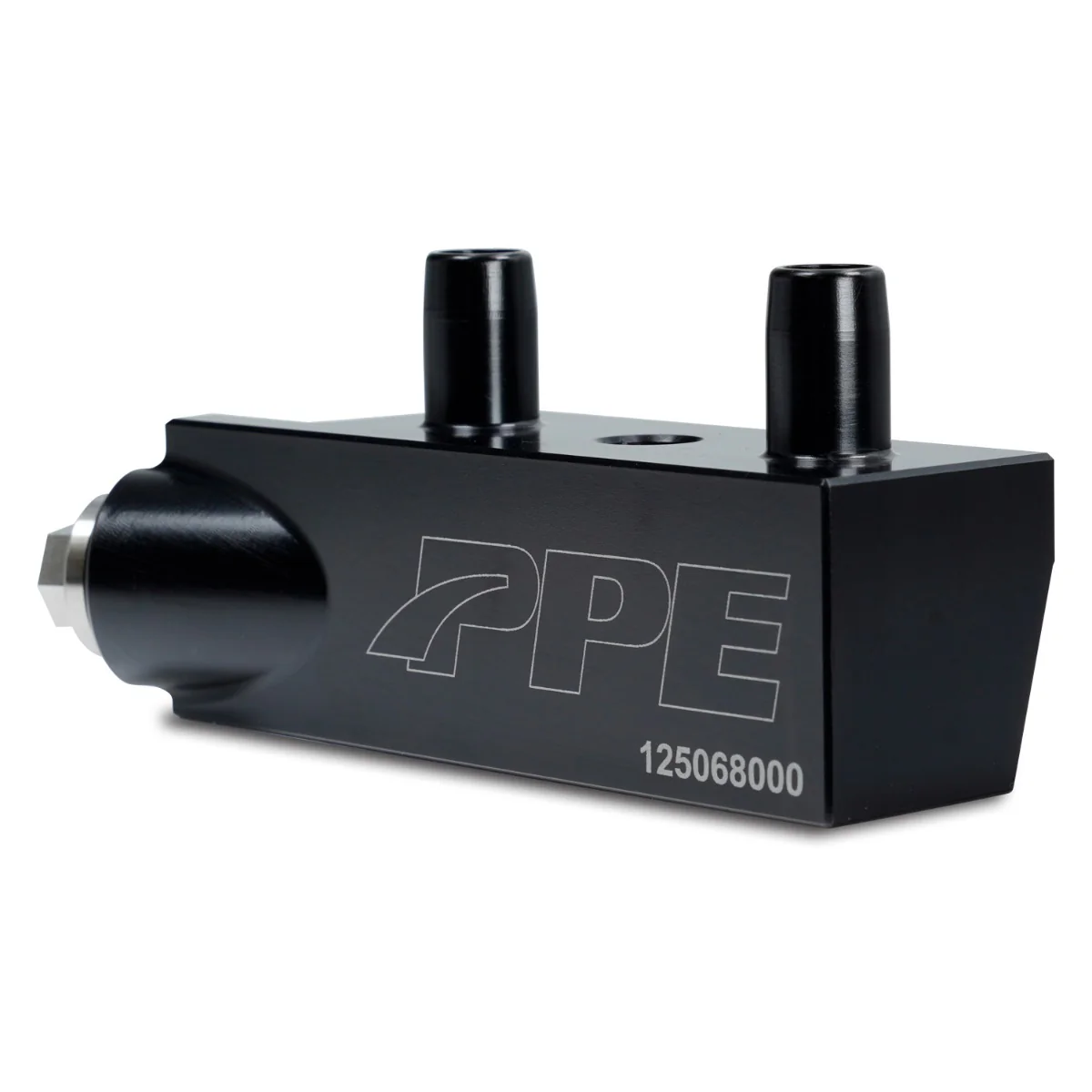

6L80 Transmission Fluid Thermal Bypass Valve

Add another measure of protection and increase fluid flow to transmission cooler. Increase cooling capacity with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve for the GM 6L80 6-Speed transmission.

The OEM part has restrictive internal passages. When the OEM valve fails in the closed position, transmission fluid doesn’t reach your cooler. This can be caused by mechanical failure or debris. The result of stock valve failure can cause the transmission to dangerously overheat. Without properly cooled transmission fluid, the demands of towing and rigorous stop-and-go driving conditions shorten the life of transmission components. The PPE Bypass Valve eliminates the extremely restrictive mechanical factory valve, maximizing fluid flow to and from the transmission cooler.

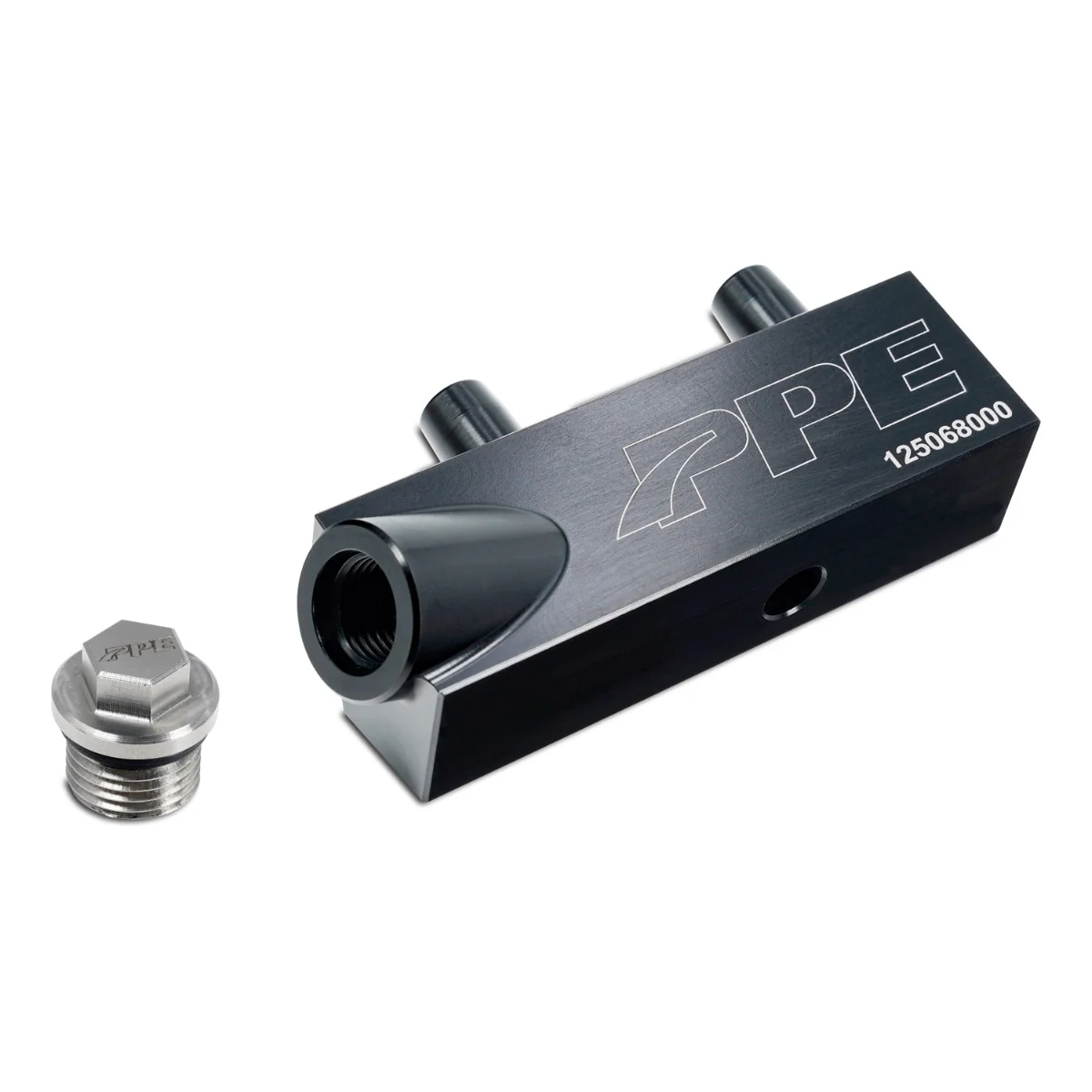

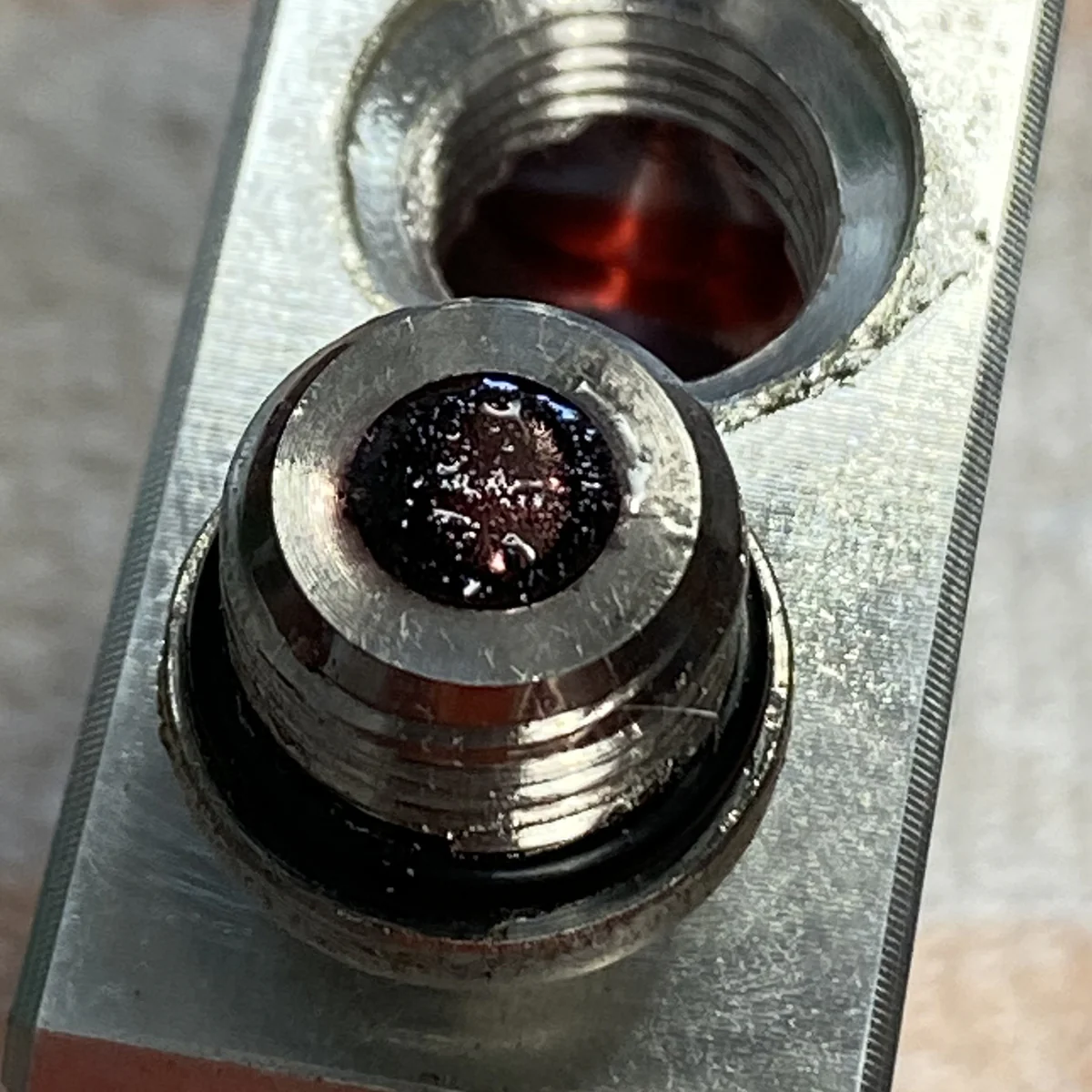

For further protection, a Neodymium magnet equipped service plug with O-ring seal has been added. The removable plug traps ferrous debris and can be accessed to remove particles from the system. The factory bypass valve does not have this feature.

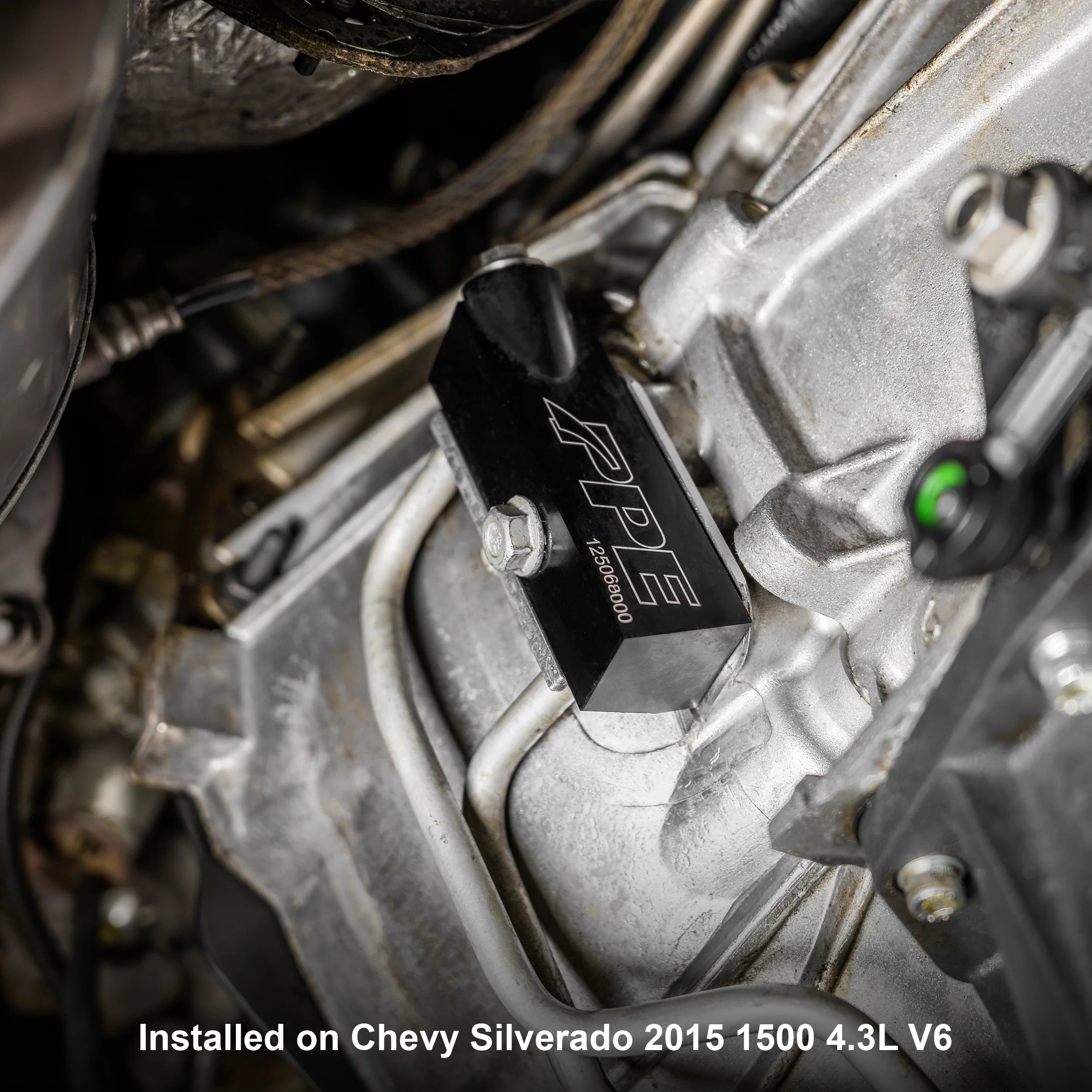

6L80 Transmission Fluid Thermal Bypass Valve for 2014-2018 GM

Check for Compatibility!

Vehicles equipped with quick connect fittings and clip-style trans line retainers are not compatible with PPE p/n 125068000 6L80 Thermal Bypass valve.
6L80 Transmission Fluid Thermal Bypass Valve for 2014-2018 GM

Vehicles equipped with the plate and bolt-style trans line retainer is compatible with PPE p/n 125068000 6L80 Thermal Bypass Valve.
6L80 Transmission Fluid Thermal Bypass Valve for 2014-2018 GM

0.00
0 reviews
5
0
4
0
3
0
2
0
1
0
Thank you! Your review has been submitted
Be the first to review “Pacific Performance Engineering 2014-2018 GM 6L80 Transmission Fluid Thermal Bypass Valve – 3/8” Line”

Your email address will not be published. Required fields are marked *

This field is required.

This field is required.

This field is required.

Be the first to review “Pacific Performance Engineering 2014-2018 GM 6L80 Transmission Fluid Thermal Bypass Valve – 3/8” Line”

Reviews

There are no reviews yet.

SKU: 840171221053 Categories: , Brand:
